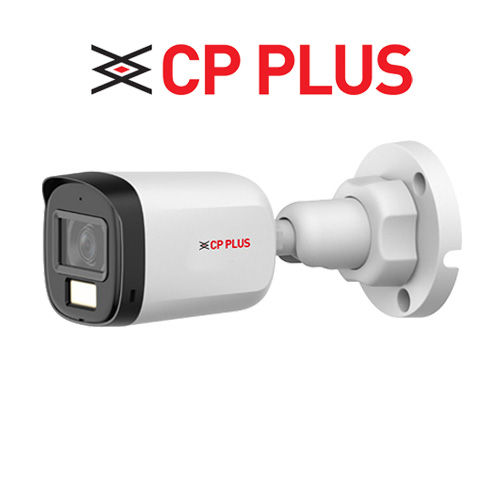

The CP-URC-TC51PL3C-L is a 5MP Dual Light Bullet Camera from CP PLUS, designed for high-definition outdoor surveillance. It combines advanced imaging technology with robust features to deliver clear video footage in various lighting conditions.
📷 Camera Specifications
- Image Sensor: 1/2.7” 5MP PS CMOS
- Effective Pixels: 2880 (H) × 1620 (V)
- Minimum Illumination:
- Color: 0.02 lux @ F2.0 (30 IRE)
- B/W: 0.002 lux @ F2.0 (30 IRE)
- 0 lux with IR on
- Lens Options: Fixed 3.6mm lens (2.8mm and 6mm optional)
- Maximum Aperture: F2.0
- Lens Mount: M12
- Close Focus Distance:
- 3.6mm: 1.3m
- 2.8mm: 1.0m
- 6mm: 2.8m
- Shutter Speed:
- PAL: 1/25s to 1/100,000s
- NTSC: 1/30s to 1/100,000s
- White Balance: Auto, Area White Balance
- Gain Control (AGC): Auto
- Backlight Compensation: BLC / HLC / DWDR
- Noise Reduction: 2D DNR
- Day/Night Functionality: Auto (ICR) / Color / B/W
- Mirror Function: Supported
- Privacy Masking: Up to 8 areas (rectangular)
- Angle Adjustment:
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
- Angle of View:
- 2.8mm lens: Horizontal 106°, Vertical 56°, Diagonal 125°
- 3.6mm lens: Horizontal 92°, Vertical 48°, Diagonal 109°
- 6mm lens: Horizontal 54°, Vertical 29°, Diagonal 62°
- DORI Distance (3.6mm lens):
- Detect: 76.0m
- Observe: 30.4m
- Recognize: 15.2m
- Identify: 7.6m
- IR Range: Up to 30 meters
- Warm Light Range: Up to 20 meters
- IR Control: Auto / Manual
- IR Mode: Smart IR & Warm Light, Warm Light Mode, IR Mode
- Dual LED Configuration: 2 IR LEDs + 2 Warm Light LEDs
- Audio: Built-in Microphone
🔌 Video & Connectivity
- Video Output: Selectable CVI / TVI / AHD / CVBS via one BNC port
- Supported Resolutions:
- 5MP (2880 × 1620)
- 4MP (2560 × 1440)
- 2MP (1920 × 1080)
- 960H (960 × 576 / 960 × 480)
- Frame Rates:
- CVI: PAL 5MP @25fps, NTSC 5MP @25fps
- AHD: PAL 4MP @25fps, NTSC 4MP @30fps
- TVI: PAL 4MP @25fps, NTSC 4MP @30fps
- CVBS: PAL 960H, NTSC 960H
- Compatibility: Supports multiple video formats for seamless integration with various DVRs
